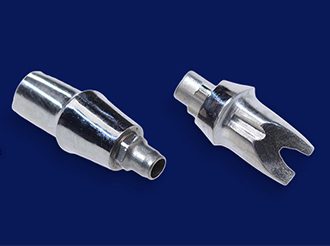

SMART 1 Implant Abutments

Modern implant dentistry demands precision, durability, and aesthetic excellence. SMART 1 Abutments by Burbank Dental Lab delivers all three, providing innovative solutions for restorative dentistry. Available in titanium or zirconia with a titanium base (Ti-base), these abutments are engineered to support successful implant restorations with unmatched reliability and adaptability. Whether restoring a single tooth or managing a complex case, SMART 1 Abutments are designed to streamline your workflow and elevate your outcomes.

What are SMART 1 implant abutments?

SMART 1 Implant Abutments are Burbank Dental Labs’ proprietary implant abutment solution. These custom implant abutments are designed for both functionality and aesthetics. Manufactured from high-quality titanium or zirconia with a titanium base, these abutments ensure a perfect balance of strength and biocompatibility.

SMART 1 Implant Abutments are engineered with precision and offer a secure fit, excellent stability, and optimal tissue integration. They are compatible with most implant systems, ensuring flexibility and ease of use for dentists across various clinical scenarios.

COMPOSITION

Titanium or Zirconia w/ Ti Base

SEE SPECIFICATIONS

IN-LAB WORKING TIME

5-Days

SEE WORKING TIMES

WARRANTY

Lifetime for Titanium Abutments and 5 years for Zirconia w/ Ti Base

WARRANTY DETAILS

TENSILE STRENGTH
FLEXURAL STRENGTH

800 MPa (Titanium)
1200 MPa (Zirconia w/ TiBase)

WHAT IS FLEXURAL STRENGTH?

The Advantages of IPS e.max

SMART 1® Implant Abutment Key Features

Versatile material options – Available in titanium for strength and zirconia for aesthetics.
Biocompatibility – Both materials support healthy tissue integration and reduce the risk of inflammation.
Custom design – Tailored to each case for optimal fit and function.
High strength – Titanium abutments withstand high occlusal forces, while zirconia offers exceptional flexural strength for demanding aesthetic cases.
Precision engineering – Ensures a secure fit and seamless integration with implant systems.
Compatible with most implant systems – Flexibility to work with various clinical scenarios.
Streamlined workflow – Simplifies case planning and execution for predictable results.

NOT THE PRODUCT YOU ARE LOOKING FOR?

Click here to see our complete list of products

VIEW ALL OUR PRODUCTS

Clinical Data

Studies have demonstrated the exceptional performance of custom abutments in enhancing implant stability and aesthetics. SMART 1 Abutments build on this foundation by combining cutting-edge materials with precise manufacturing. Titanium abutments boast a tensile strength exceeding 800 MPa, while zirconia abutments offer a flexural strength of over 1,200 MPa. These properties ensure long-term success, even in challenging clinical environments.

Indications For Use

SMART 1 Abutments are suitable for a wide range of restorative applications, including:

Single-tooth dental implant restorations
Multi-unit bridges
Inlays and onlays
Cases requiring high aesthetic demands (zirconia abutments)
Posterior restorations with high occlusal loads (titanium abutments)

These abutments provide the flexibility to meet the specific demands of each patient’s case while maintaining quality and performance.

REQUEST A QUOTE FOR THIS PRODUCT

REQUEST A QUOTE

Company Name*
Doctor’s Name
Doctor’s Name Doctor’s Last Name
Office Phone Number*
E-mail*
Clinician*
Zipcode*
Contact
- Please check the box to confirm that you want to be contacted by a Burbank Dental Lab representative.

42968

IPS e.max Monolithic - Burbank Dental Lab

Clinical Handling

SMART 1 Abutments are designed to integrate effortlessly into your workflow. Their precision engineering provides a hassle-free experience, from case planning to final restoration.

Titanium abutments: The robust design withstands occlusal forces, making them suitable for both anterior and posterior applications. Additionally, the titanium abutment(s) can be anodized for a more natural effect.
Zirconia abutments: Highly aesthetic and pre-shaded for natural blending. Perfect for anterior regions where appearance is critical.

Implant Workflow

To ensure the successful fabrication of SMART 1 Implant Abutments, dentists need to provide essential information and materials tailored to their preferred workflow. Burbank Dental Lab accommodates traditional and digital workflows, streamlining the process for predictable outcomes.

Traditional Workflow

The preparation of IPS e.max restorations is essential to their longevity and success. Follow these guidelines to achieve the best results:

Impression taking – Capture precise details of the surrounding tissue and neighboring teeth with a PVS impression of the implant site.
Implant analog – Send the corresponding implant analog for accurate model creation.
Bite registration – Include a precise bite registration to establish proper occlusion.
Shade selection – Specify the desired shade for optimal aesthetic matching.
Lab prescription – Clearly outline the case requirements, including material preference (titanium or zirconia with Ti-base), abutment design, and emergence profile.

Digital Workflow

Intraoral scan – An intraoral scanner captures a detailed digital scan of the implant site. Ensure the scan includes implant-specific scan body, neighboring teeth, gingival contours, and occlusal surfaces. Please make sure to include specific platform company, series, diameter, and scan body used.
Digital file submission – Upload the scanned file in STL or compatible format through Burbank Dental Lab’s online portal.
Design preferences – Communicate specific design requirements, including angulation, tissue support, and material choice.
Shade and material specification – Indicate the desired shade and whether titanium or zirconia with Ti-base is preferred.

IPS e.max - esthetic lithium disilicate glass-ceramic - Burbank Dental Lab CA

IPS e.max restorations - Burbank Dental Lab

SMART 1 Abutment Placement Guidelines

Due to their precise fabrication and custom design, SMART 1 Implant Abutments and restorations can be placed chairside easily. To ensure optimal placement and fit, follow these steps:

Inspect the abutment – Verify the abutment’s design and fit before placement. Ensure that it matches the lab prescription and is free of contaminants.
Prepare the implant site – Remove any debris or healing abutments from the implant site. Confirm that the implant platform is clean and ready for abutment placement.
Seat the abutment – Align the abutment with the implant and gently seat it using a handpiece or manual driver. Ensure the connection is secure without excessive force.
Tighten the abutment screw – Use the torque specifications provided by the implant manufacturer to secure the abutment in place. Do not overtighten the implant or abutment as this could compromise it.
Evaluate fit and positioning – Check the abutment’s angulation and emergence profile to ensure it aligns appropriately with the prosthetic design. Make minor adjustments to the crown or restoration as needed.
Take a radiograph—Confirm the proper seating of the abutment with a radiograph to ensure there are no gaps at the implant-abutment interface.
Soft tissue management – Verify that the abutment supports the gingival tissue adequately and promotes healthy tissue integration.

Implant Restoration Cementation Guidelines

If the SMART 1 Abutment and final crown were requested separately, cementation of restorations on SMART 1 Abutments requires attention to detail to achieve a secure bond and optimal aesthetics:

Clean the abutment: Remove contaminants with an ultrasonic cleaner or alcohol rinse.
Try-In the restoration: Check for fit, occlusion, and aesthetics before cementation.
Surface preparation: For zirconia restorations, use a primer to enhance adhesion.
Cement application: Apply resin cement evenly to the internal surface of the crown or bridge.
Final seating: Seat the restoration with firm pressure and cure according to the cement manufacturer’s recommendations.

Chairside Adjustments

Dentists rarely need to adjust SMART 1 Abutments due to their precise fabrication using state-of-the-art CAD/CAM technology. These custom abutments are designed to fit perfectly and meet the specific needs of each case. However, the dental crowns or restorations placed over the abutments may occasionally require minor adjustments.

Use fine-grit diamond burs to carefully modify contours or occlusion for crown adjustments.
Ensure the crown’s surface is polished after adjustments to maintain aesthetics and prevent wear on opposing teeth.
To protect the restoration’s material integrity, avoid overheating it during adjustments. Use water to keep the material cool, preventing micro-fractures in the zirconia.

REQUEST A QUOTE FOR THIS PRODUCT

REQUEST A QUOTE

Company Name*
Doctor’s Name
Doctor’s Name Doctor’s Last Name
Office Phone Number*
E-mail*
Clinician*
Zipcode*
Contact
- Please check the box to confirm that you want to be contacted by a Burbank Dental Lab representative.

22213

FAQ

What is the difference between titanium and zirconia abutments?

Titanium abutments provide superior strength and are ideal for posterior restorations and cases with high occlusal loads. They are highly durable, resistant to fracture, and support healthy tissue integration due to their biocompatibility.

On the other hand, zirconia abutments offer superior aesthetics and are recommended for anterior restorations or areas with high aesthetic demands. These abutments are an excellent option for patients with a thin gingival tissue biotype because their toothlike color prevents the inevitable graying effect that can come from titanium abutments in these cases. While zirconia abutments are strong, they are best suited for less force-intensive areas where appearance is critical.

Are SMART 1 Implant Abutments compatible with all implant systems?

SMART 1 Implant Abutments are designed to be compatible with most major implant systems, ensuring flexibility for a wide range of restorative needs. This compatibility makes them an excellent choice for practices with multiple implant brands.

Consult Burbank Dental Lab for detailed information regarding your preferred system. Their adaptability ensures a streamlined workflow and reliable integration into your existing protocols.

Why are custom abutments a better choice than stock abutments?

Custom abutments provide a tailored fit for each case, ensuring optimal support for the prosthetic restoration. Unlike stock abutments, which have a one-size-fits-all approach, custom abutments are designed to match the patient’s specific angulation, emergence profile, and tissue contours.

This customization improves aesthetics, promotes tissue integration, and enhances functionality. Custom abutments also minimize the need for adjustments, saving valuable chair time and ensuring more predictable outcomes.
